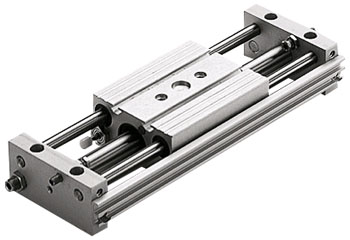

Linear drive with solenoid coupling
The sliding of the piston in the double rod cylinder is controlled by a reciprocal input of compressed air.
Adjustable parameters
| Designation |
Range |
Default value |
| Piston diameter |
1 ... 1000 mm |
20 |
| Piston rod diameter |
0 ... 1000 mm |
8 |
| Piston Position |
0 ... 5000 mm |
0 |
| Maximum stroke |
1 ... 5000 mm |
200 |
| Mounting angle |
0 ... 360 deg |
0 |
Cylinder friction
| Designation |
Range |
Default value |
| Reference pressure |
0.1 ... 20 bar |
6 |
| Reference velocity |
0.1 ... 2 m/s |
1 |
| Friction at dp_ref |
1 ... 5000 N |
120 |
| Break-away force at dp_ref |
1 ... 5000 N |
12 |
Cylinder mass
| Designation |
Range |
Default value |
| Moving mass |
0.01 ... 1000 kg |
0.3 |
| Designation |
Range |
Default value |
| Leakage |
0 ... 10 l/(min.bar) |
0 |
| Spring pressure at x=0 |
0 ... 10 MPa |
0.05 |
| Spring pressure at x=x_max |
0 ... 10 MPa |
0.1 |
| Damping length |
1 ... 100 mm |
10 |
Calculated parameters
| Designation |
Range |
Default value |
| Piston area |
0 ... 10000 cm2 |
2.0106 |
| Ring area |
0 ... 10000 cm2 |
1.2252 |
Failure models
| Failure model |
Description |
| Internal leakage |
An internal leakage occurs. The value can be adjusted. |
| Leakage A |
A leakage at the left connector A occurs. The value of the leakage is adjustable. |
| Leakage B |
A leackage at the right connector B occurs. The value of the leackage is adjustable. |
| High friction |
A high friction occurs at the piston. The value of the friction can be adjusted. |
Parameter
| Designation |
Range |
Default value |
| Leakage |
0 ... 1000 l/(min.bar) |
1 |
| Friction |
0 ... 10000000 N.s/m |
10000 |
