Single acting cylinder

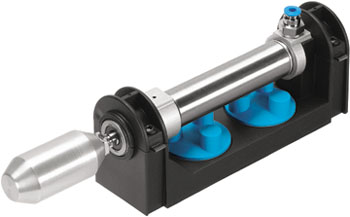

The piston rod of a single acting cylinder is operated by the input of compressed air at the front end position. When the compressed air is shut off, the piston returns to its starting position via a return spring. The piston of the cylinder contains a permanent solenoid which can be used to operate a proximity switch.
Adjustable parameters
Designation |
Range |
Default value |
Piston diameter |
1 ... 1000 mm |
20 |
Piston rod diameter |
0 ... 1000 mm |
8 |
Piston Position |
0 ... 5000 mm |
0 |
Maximum stroke |
1 ... 5000 mm |
200 |
Mounting angle |
0 ... 360 deg |
0 |
Cylinder friction
Designation |
Range |
Default value |
Reference pressure |
0.1 ... 20 bar |
6 |
Reference velocity |
0.1 ... 2 m/s |
1 |
Friction at dp_ref |
1 ... 5000 N |
120 |
Break-away force at dp_ref |
1 ... 5000 N |
12 |
Cylinder mass
Designation |
Range |
Default value |
Moving mass |
0.01 ... 1000 kg |
0.3 |
Designation |
Range |
Default value |
Leakage |
0 ... 10 l/(min.bar) |
0 |
Spring pressure at x=0 |
0 ... 10 MPa |
0.05 |
Spring pressure at x=x_max |
0 ... 10 MPa |
0.1 |
Damping length |
1 ... 100 mm |
10 |
Calculated parameters
Designation |
Range |
Default value |
Piston area |
0 ... 10000 cm2 |
2.0106 |
Ring area |
0 ... 10000 cm2 |
1.2252 |
Failure models
Failure model |
Description |
Internal leakage |
An internal leakage occurs. The value can be adjusted. |
Leakage A |
A leakage at the left connector A occurs. The value of the leakage is adjustable. |
Leakage B |
A leackage at the right connector B occurs. The value of the leackage is adjustable. |
High friction |
A high friction occurs at the piston. The value of the friction can be adjusted. |
Parameter
Designation |
Range |
Default value |
Leakage |
0 ... 1000 l/(min.bar) |
1 |
Friction |
0 ... 10000000 N.s/m |
10000 |
