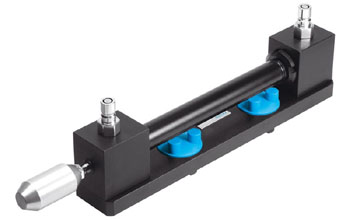

Double acting cylinder
Double acting cylinder with piston rod on one side. The piston of the cylinder contains a permanent solenoid which can be used to operate a proximity switch.
Adjustable parameters
| Designation |
Range |
Default value |
| Piston diameter |
1 ... 1000 mm |
16 |
| Piston rod diameter |
0 ... 1000 mm |
10 |
| Piston Position |
0 ... 5000 mm |
0 |
| Maximum stroke |
1 ... 5000 mm |
200 |
| Mounting angle |
0 ... 360 deg |
0 |
Cylinder friction
| Designation |
Range |
Default value |
| Break-away force |
0 ... 10000 N |
65 |
| Coulomb friction force |
0 ... 10000 N |
55 |
| Viscous friction |
0.1 ... 10000 N.s/m |
215 |
Cylinder mass
| Designation |
Range |
Default value |
| Moving mass |
0.01 ... 1000 kg |
0.3 |
| Designation |
Range |
Default value |
| Leakage |
0 ... 10 l/(min.bar) |
0 |
| Spring pressure at x=0 |
0 ... 40 MPa |
0.4 |
| Spring pressure at x=x_max |
0 ... 40 MPa |
1 |
| Damping length |
0 ... 100 mm |
10 |
Calculated parameters
| Designation |
Range |
Default value |
| Piston area |
0 ... 10000 cm2 |
2.0106 |
| Ring area |
0 ... 10000 cm2 |
1.2252 |
Failure models
| Failure model |
Description |
| Internal leakage |
An internal leakage occurs. The value can be adjusted. |
| High friction |
A high friction occurs at the piston. The value of the friction can be adjusted. |
Parameter
| Designation |
Range |
Default value |
| Leakage |
0 ... 1000 l/(min.bar) |
0.035 |
| Viscous friction |
0 ... 10000000 N.s/m |
10000 |
