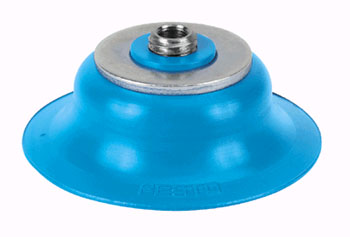

Vacuum suction cup
The suction cup can be used together with the vacuum suction nozzle to grip objects by suction.
Lowering the cup onto an object is simulated in FluidSIM in Simulation Mode by clicking on the component. An additional click lifts the suction cup.
Adjustable parameters
| Designation | Range | Default value |
|---|---|---|
| Position | 0 ... 1 | 0 |
| Diameter | 1 ... 1000 mm | 20 |
| Load to be lifted | 0.001 ... 1000 kg | 0.1 |
| Safety factor | 0.1 ... 100 | 1 |
| Leakage | 0 ... 1000 l/min | 0 |
