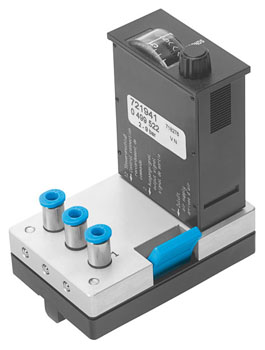

Pneumatic timer, normally open

After the pilot signal is applied at port 10, a preset time elapses before the pneumatic timer is actuated. It returns to its initial position via a return spring once the signal is removed. The time delay is infinitely adjustable by means of a regulating screw. The time delay is reset automatically within 200 ms.

Adjustable parameters

Designation Range Default value
Delay time 0.1 ... 100 s 3
Standard nominal flow rate 0.1 ... 5000 l/min 50
