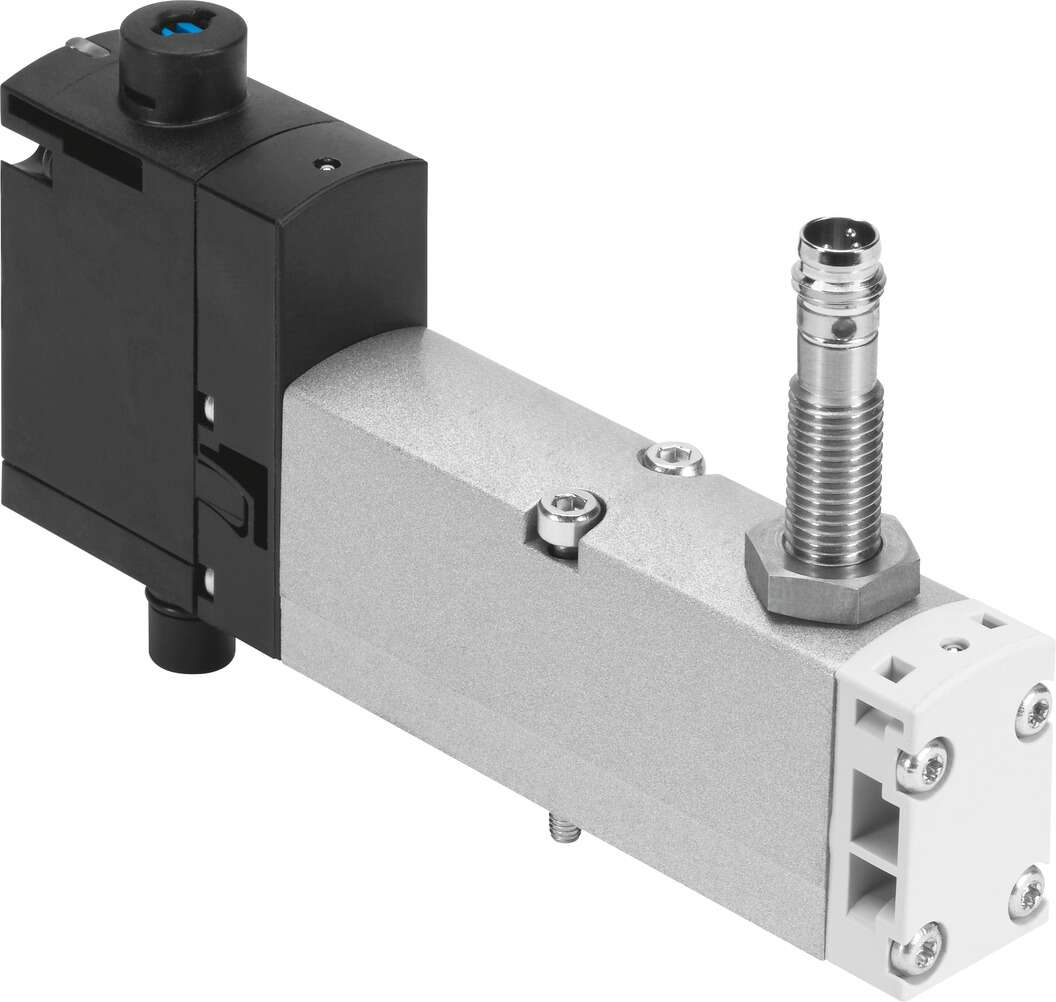

Festo solenoid valve for valve terminal VTSA
The solenoid valve is an industrial component of the Festo valve terminal VTSA with the designation VSVA-B-M52-MZD-A2-1T1L-APP and the part number 573202.
Detailed information and catalog data can be found at www.festo.com by searching for 573202.
The switching position of the valve can be monitored using an inductive proximity switch.
Adjustable parameters
| Designation | Range | Default value |
|---|---|---|
| Standard nominal flow rate | 0.1 ... 5000 l/min | 550 |
| Minimum voltage | 0.1 ... 300 V | 20 |
| Positioning time | 1e-4 ... 10 s | 0.012 |
| Reset time | 1e-4 ... 10 s | 0.038 |
