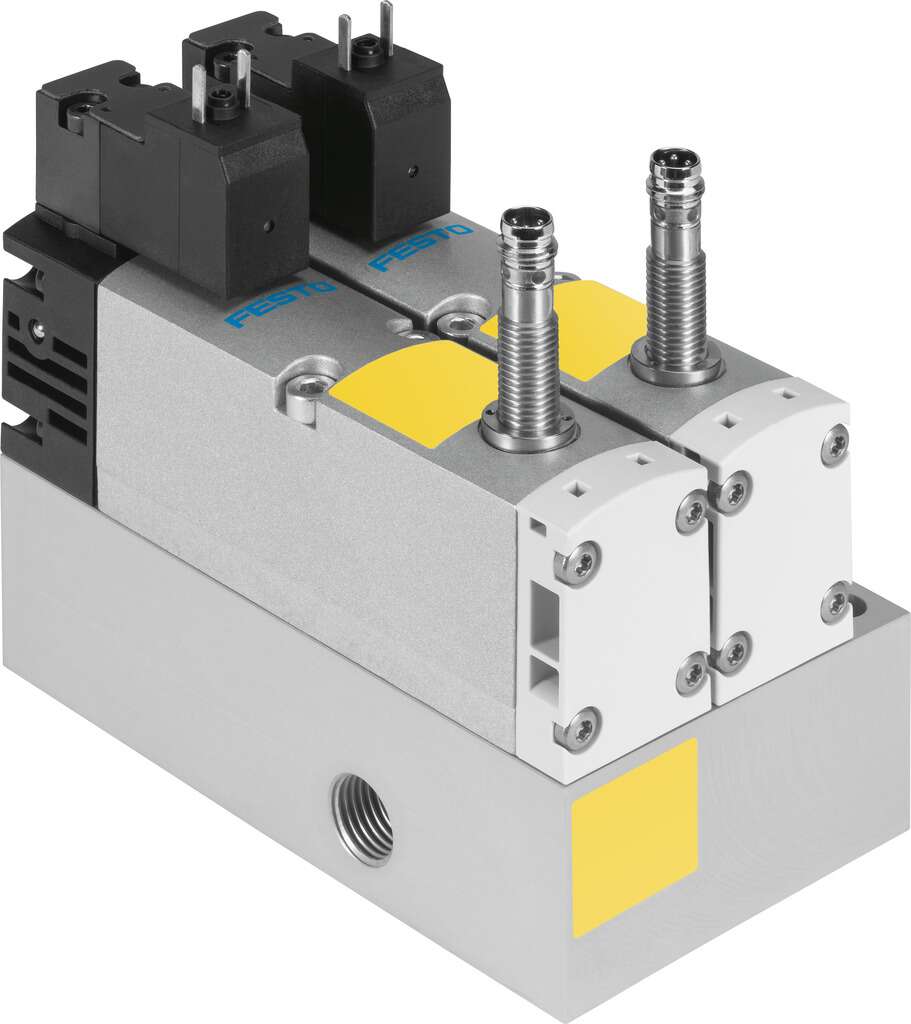

Control block VOFA with safety function
The control block is an industrial component from Festo with the designation VOFA-L26-T32C-M-G14-1C1-APP and the part number 574011.
Detailed information and catalog data can be found at www.festo.com by searching for 574011 or VOFA.
The switching positions of the valves can be monitored using an inductive proximity switch.
Adjustable parameters
| Designation | Range | Default value |
|---|---|---|
| Standard nominal flow rate | 0.1 ... 5000 l/min | 1050 |
| Minimum voltage | 0.1 ... 300 V | 20 |
| Positioning time | 1e-4 ... 10 s | 0.024 |
| Reset time | 1e-4 ... 10 s | 0.054 |
